FMC-HYD-202

产品详情

FMC-HYD-202     FMC-HYD-203     FMC-HYD-204

FMC-HYD-206     FMC-HYD-210     FMC-HYD-310

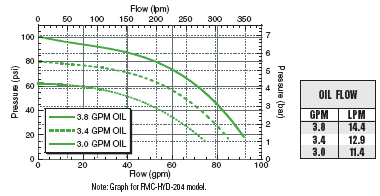

 FMC-HYD-202  FMC-HYD-203  FMC-HYD-204  !FMC-HYD-206  FMC-HYD-210  FMC-HYD-310 Performance Graph
1-1/41
SUCTIONDISCHARGE
  • The farm industry standard since 1969.

  • The 202 and 203 motors require 2 GPM (7.6 LPM) and 3 GPM (11.4 LPM) hydraulic fluid input. Recommended for engineered systems with limited oil flow.

  • The 204 motor requires 4 GPM(15.1 LPM) maximum hydraulic fluid input. Recommended for:

    • Pressure Compensating Closed Center Systems

    • Open Center Systems up to 13 GPM (49.2 LPM) using internal needle valve bypass.


  • The 206 motor requires 7 GPM (26.5 LPM) maximum hydraulic fluid input and fits virtually all tractor hydraulic systems. Recommended for:

    • Pressure Compensating Closed Center Systems

    • Load Sensing Closed Center Systems

    • Open Center Systems up to 16 GPM (60.6 LPM) using internal needle valve bypass


  • The 210 motor requires 10 GPM (37.9 LPM) maximum hydraulic fluid input. Recommended for:

    • Load Sensing Closed Center Systems

    • Open Center Systems up to 17 GPM (64.4 LPM) using internal needle valve bypass.


  • The 310 motor requires 16 GPM (60.6 LPM) maximum hydraulic fluid input. Recommended for:

    • Large Open Center Systems up to 24 GPM (90.9 LPM) using internal needle valve bypass.

    • Optional 206 motor with integrated PWM (pulse width modulated) motor for precision applications


ACE水泵FMC-HYD-206 ACE水泵FMC-HYD-210 ACE水泵FMC-HYD-202 ACE水泵FMC-HYD-204 ACE水泵FMC-HYD-203 ACE水泵FMC-HYD-310

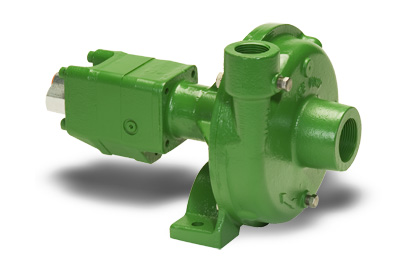

Hydraulic Driven Centrifugal Pumps

FMC-75-HYD-204

FMC-75-HYD-206

FMC-HYD-202

FMC-HYD-203

FMC-HYD-204

FMC-HYD-206

FMC-HYD-210

FMC-HYD-310

FMC-150-HYD-206

FMC-150F-HYD-206

FMC-150FS-HYD-206

FMC-150SP-HYD-206

FMC-650-HYD

FMC-650F-HYD

FMC-200-HYD-210

FMC-200-HYD-304

FMC-200-HYD-310

FMC-200F-HYD-304

FMC-750F-HYD-M22

FMC-750F-HYD-M25

FMC-850F-HYD

HYDRAULIC MOTOR

BAC-75-HYD-204N

BAC-75-HYD-206N

BAC-75-HYD-210N

BAC-75-HYD-204R

BAC-75-HYD-206R

BAC-75-HYD-204

BAC-75-HYD-206

BAC-75-HYD-210

BAC-75-HYD-202

BAC-75-HYD-203

BAC-75-HYD-304

BAC-75-HYD-304L

BAC-75-HYD-310

BAC-75-HYD-310L

BAC-75-HYD-304-12SAE

BAC-75-HYD-305

BAC-75-HYD-306

BAC-75-HYD-307

BAC-75-HYD-304N

BAC-75-HYD-310N

Magnetic Clutch Driven Centrifugal Pumps

FMC-MAG

FMC-150-MAG

FMC-650-MAG-D

FMC-200-MAG

FMC-200-MAG-DX

FMC-200SS-MAG-DX

FMC-CW-MAG-D

FMC-CW-150-MAG

FMC-CW-150-MAG-D

FMC-CW-150-MAG-DX3

FMC-CW-200-MAG

FMC-CW-800-MAG

FMC-CW-800-MAG-D
